Custom Otside Hexagon - Heidenhain Program

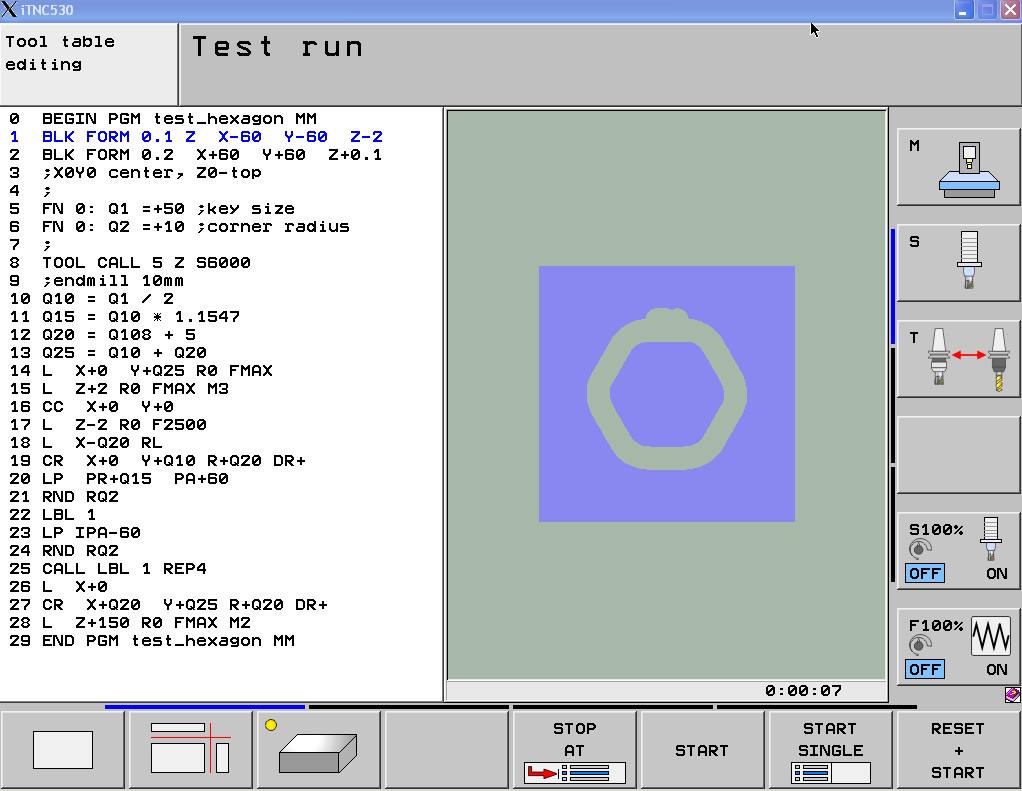

Тhat is my idea of custom HEXAGON creating program. You can change only 2 variables and make your hexagon. The program is demonstrated with end mill 10mm but you can use any size and the program will use Q108(tool offset radius) to calculate position.
0 BEGIN PGM test_hexagon MM
1 BLK FORM 0.1 Z X-60 Y-60 Z-2
2 BLK FORM 0.2 X+60 Y+60 Z+0.1
3 ;X0Y0 center, Z0-top
4 ;
5 FN 0: Q1 =+50 ;key size
6 FN 0: Q2 =+10 ;corner radius
7 ;
8 TOOL CALL 5 Z S6000
9 ;endmill 10mm
10 Q10 = Q1 / 2
11 Q15 = Q10 * 1.1547
12 Q20 = Q108 + 5
13 Q25 = Q10 + Q20
14 L X+0 Y+Q25 R0 FMAX
15 L Z+2 R0 FMAX M3
16 CC X+0 Y+0
17 L Z-2 R0 F1000
18 L X-Q20 RL
19 CR X+0 Y+Q10 R+Q20 DR+
20 LP PR+Q15 PA+60
21 RND RQ2
22 LBL 1
23 LP IPA-60
24 RND RQ2
25 CALL LBL 1 REP4
26 L X+0
27 CR X+Q20 Y+Q25 R+Q20 DR+
28 L Z+150 R0 FMAX M2
29 END PGM test_hexagon MM
