KIA Cee`d JD rear seat clip - 3D printed part
EN
One day, I just pulled the rear seat up intending to fold it and just hear the plastic crack.
That was the small clip, located under the seat and holding it on a bit tight on place.

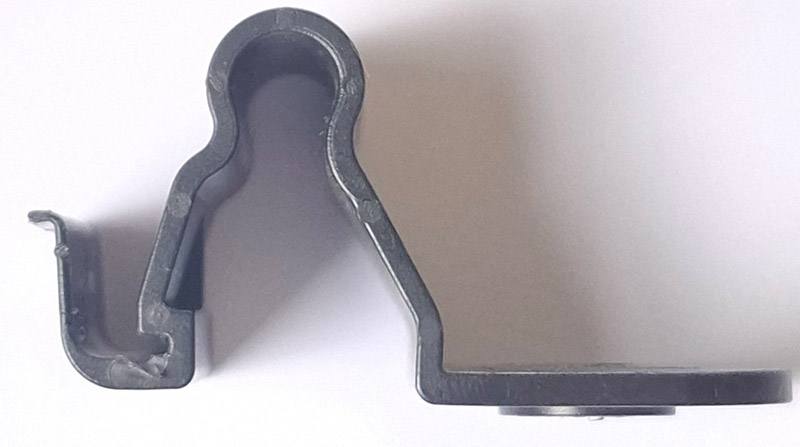

The part itself look like that:

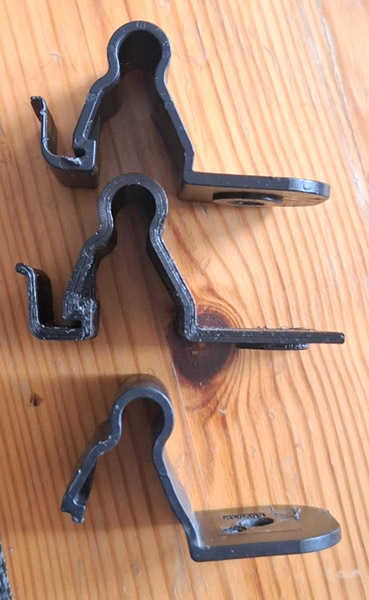

That`s why I made small reverse engineering and come up with this design:
So, f you need one too, here are the 3D files as follow: STEP file and STL file

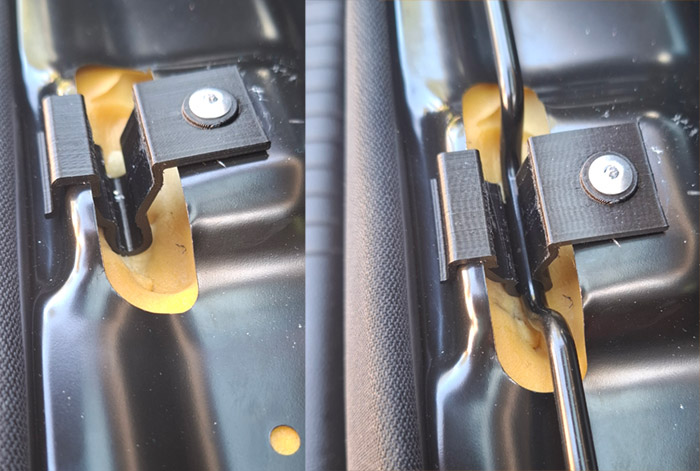

Just remove the seat holding bolts, drill the rivet head off, put the new one and re-rivet it again. No more than 15min job.
Good luck!
